Bellow sealed globe valve in forged and cast steel
Straight pattern with bolted bonnet
Rising,non rotating stem
Increased stem nut positioning,
Blowout safety bonnet sealing
Flange- or BW-ends
Welded seat
Seat in stellite or Cr-steel
Self adjusted gland
Design:EN 13709,EN 12516
Face to face:EN558-1,EN12982
Flange: EN1092-1
Bellows: MSS-SP 117
BW-ends:EN12627
Marking:EN 19
Pressure test: EN12266-1
CE-mark according:PED97/23,category 3
Water, steam, and other medium which not damage
the internal components
Uses within the all kind of industries
The valves are designed for shut of application or
simple regulation

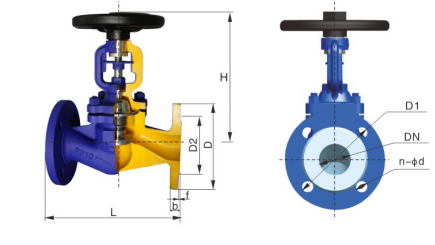

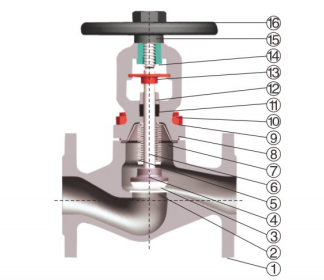

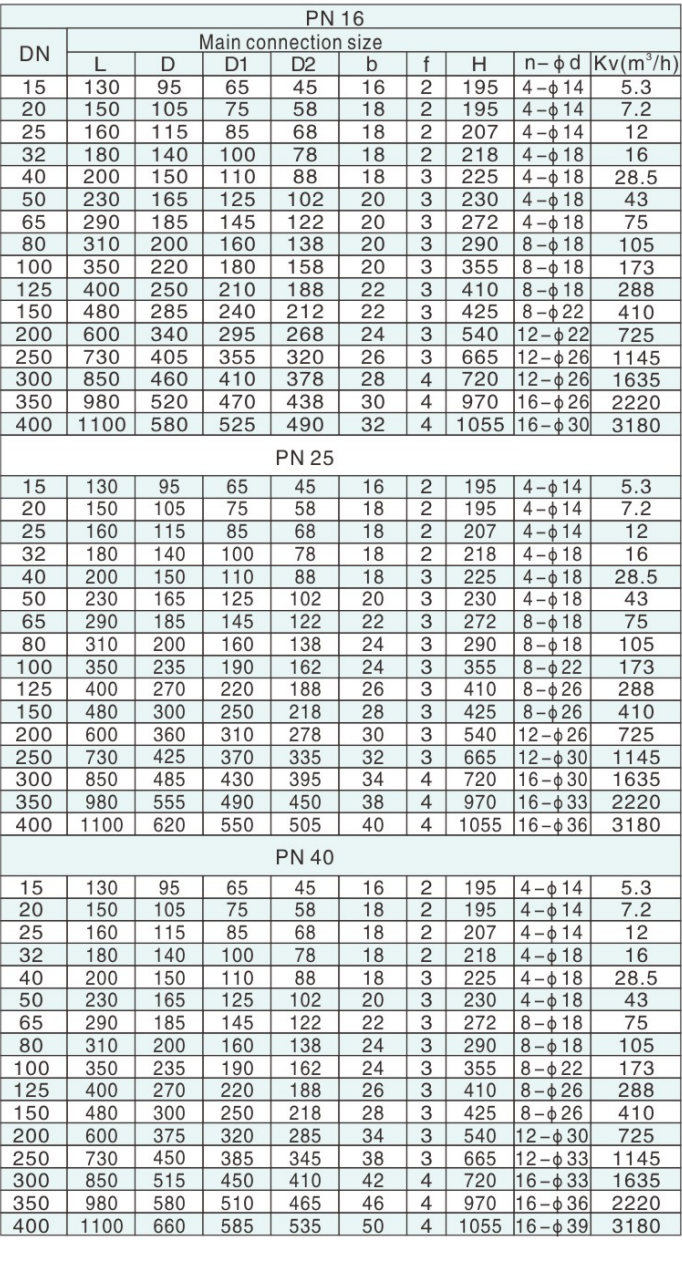

| NO. | Part name | Material |
| 1 | Body | 1.0619+N |
| 2 | Seat | 1.4021+QT、1.4301 |
| 3 | Disc |
1.4021+QT、1.4301+Stellite |
| 4 | Pin | 1.4301、1.4401 |
| 5 | Bellow assembly | 1.4301、1.4401、1.4571 |
| 6 | Stem | 1.4021+QT、1.4301 |
| 7 | Gasket | Flexible graphite+stainless steel |
| 8 | Bonnet | 1.0619+N |
| 9 | Nut | ASTM A194-2H、A194-8 |
| 10 | Studs | A193 B7、25CrMo4、1.7218 |
| 11 | Packing | Pure Graphite |
| 12 | Gland | 1C25、1.4301、1.4401 |
| 13 | Locator | 1C25 |
| 14 | Yoke Nut | Steel alloy、Brass、Bronze |
| 15 | Handwheel | CAST IRON、CAST STEEL |
| 16 | Cap | 1C45 |
