APPLICATION:
Petroleum, chemical industry, pharmacy, fertilizer, power
industry etc.
PRODUCT MAIN ADVANTAGE:
1.Benefit from the cone and streamline shape design, the disc has
a reliable seal and longer service life.
2.Grease nipple. It can direct lubricate the stem, nut and sleeve.
3.Ergonomic handwheel. It provide longer service life and easier
operation.
4. Heat-treatment and nitrogen treatment. After these measures,
the stem will have the function of corrosion-resistance and
friction-resistance.
STANDARD
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2546
Test & inspection: DIN 3230

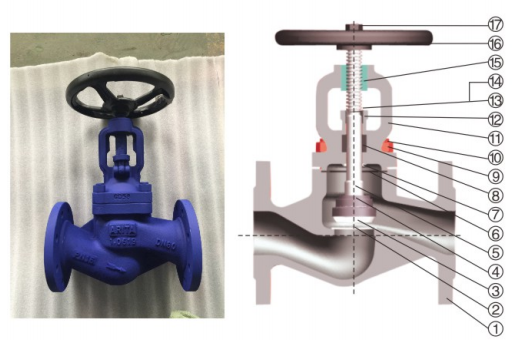

MAIN PARTS MATERIALS
| NO. | Part name | Material |
| 1 | Body | 1.0619、1.4301、1.4401 |
| 2 | Seat | 1.4301、Stellite |
| 3 | Disc | 1.4021、1.4301+Stellite |
| 4 | Cap | 1C45、1.4301、1.4401 |
| 5 | Stem |
1.4021、1.4301、1.4401 |
| 6 | Metal Gasket | Stainless steel |
| 7 | Back seal | 1.4021、1.4301 |
| 8 | Packing | Flexible graphite |
| 9 | Nut | ASTM A194-2H、A194-8 |
| 10 | Double-headed Bolt | ASTM A193-B7、A193-B8 |
| 11 | Cover | 1.0619、1.4301、1.4401 |
| 12 | Glend | 1.0619、1.4301 |
| 13 | Jack Bolt | ASTM A193-B7、A193-B8 |
| 14 | Nut |
ASTM A194-2H、A194-8 |
| 15 | Stem nut | Copper alloy、D2、BL2 |
| 16 | Handwheel | Carbon steel |
| 17 | Nut | A194-2H、A194-8 |

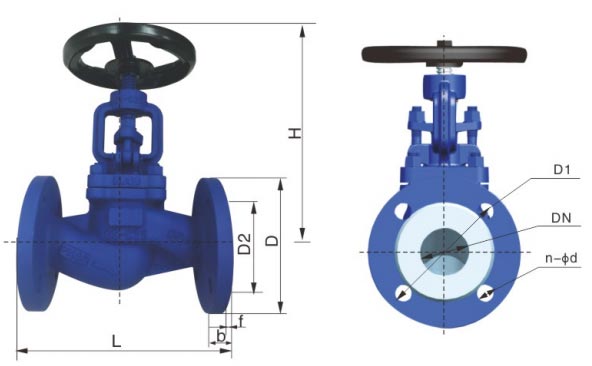

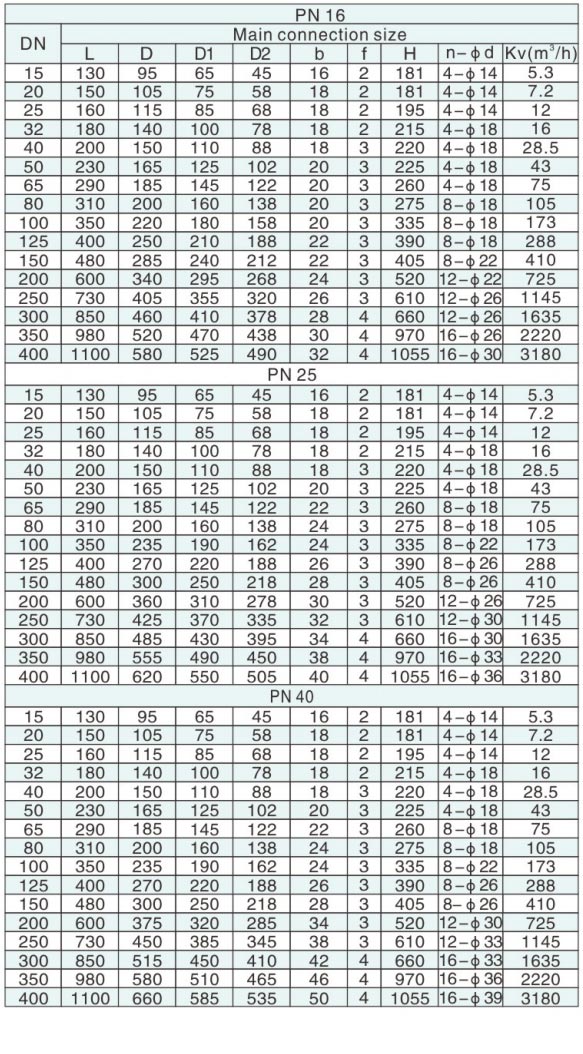

MAIN CONNECTION SIZE
EN
