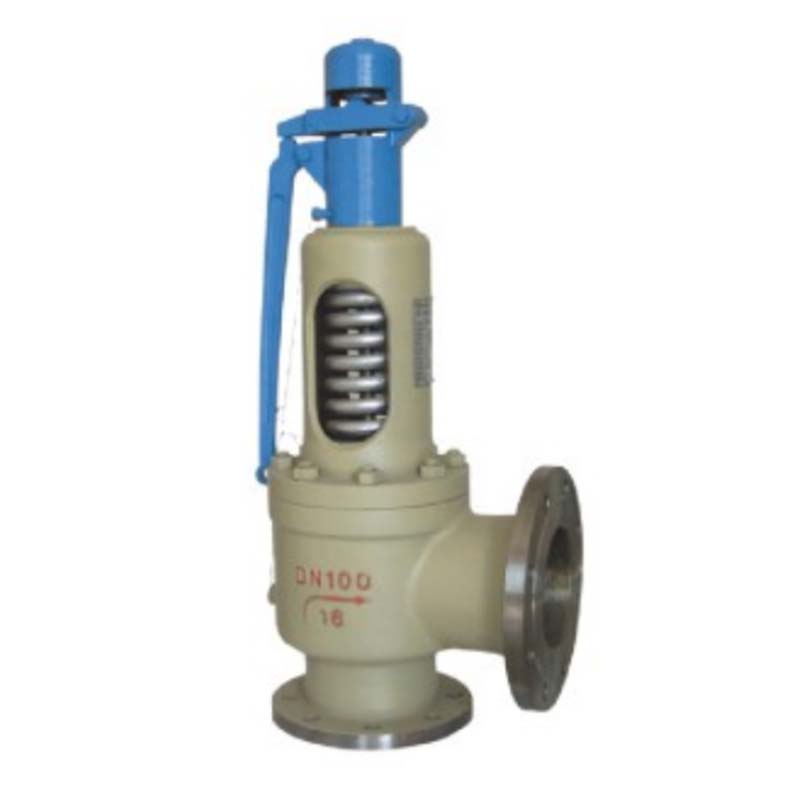

1.Safety valve can used for the temperaure ≤350℃ of Steam ,air,gas,water oil
liquid etc.
2.Flange ends can customer requirement Acc. to DIN Standard/JIS Standard
/ASME Standard/GOST Standard process.
3.Body mateiral can per medium to cast steel WCB/WC6/WC9,cast stainless steel
304 /316/316Ti/317 etc.
4.Paint color per customer requirement
A41H/A47H TYPE MAIN DIMENSIONS(mm)
| PN16-PN40,JIS10K-20K,150LB-300LB FLANGE | ||||
| INLET | Do | OUTLET | L | L1 |
| DN20 | 15 | DN20 | 100 | 85 |
|
DN25 |
20 |
DN25 |
100 | 85 |
|
DN32 |
25 |
DN32 |
115 | 100 |
|
DN40 |
32 |
DN40 |
120 | 110 |
|
DN50 |
40 |
DN50 |
135 | 120 |
|
DN65 |
50 |
DN65 |
140 | 130 |
|
DN80 |
65 |
DN80 |
160 | 135 |
|
DN100 |
80 |
DN100 |
170 | 160 |
|
DN125 |
100 |
DN125 |
190 | 190 |
|
DN150 |
125 |
DN150 |
205 | 195 |
|
DN200 |
150 |
DN200 |
240 | 230 |
|
DN250 |
200 |
DN250 |
350 | 320 |
