STRUCTURE CHARACTERISTICS
1、This type of steam trap is applied to balanced double seat or single seat with reliable closedown and long life circle.
2、There has always been high temperature condensation water upstream, which will form reliable water sealwithout any leakage of steam
3、Its operation will not cause any noise. Thus, it is preferable to the environment.
4、The valve is completely open when the steam firstly comes. The low temperature condensation water and air can be discharged rapidly, which largely shortens the start time of equipment.
5、 All the internal parts are made of stainless steel, which is resistant to corrosion and cavitation erosion.
STANDARD
1、Basic Design:GB/T22654-2008
2、Face to face dimensions:GB/T 12250-2005
3、Test and inspection:GB/T 12251-2005
4、Flange Size according to: Asme B16.5

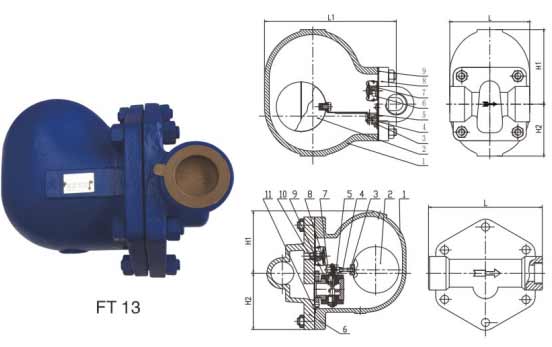

MAIN PARTS MATERIALS
| NO. | Part name | Material |
| 1 | Body | WCB |
| 2 | Float Ball | 304 |
| 3 | Seat | 2Cr13 |
| 4 | Disc | 2Cr13 |
| 5 | Yoke | 304 |
| 6 | Seat | 2Cr13 |
| 7 | Bonnet | WCB |
| 8 | Gastket | 304+Graphite |
| 9 | Venting Groupware | 304 |

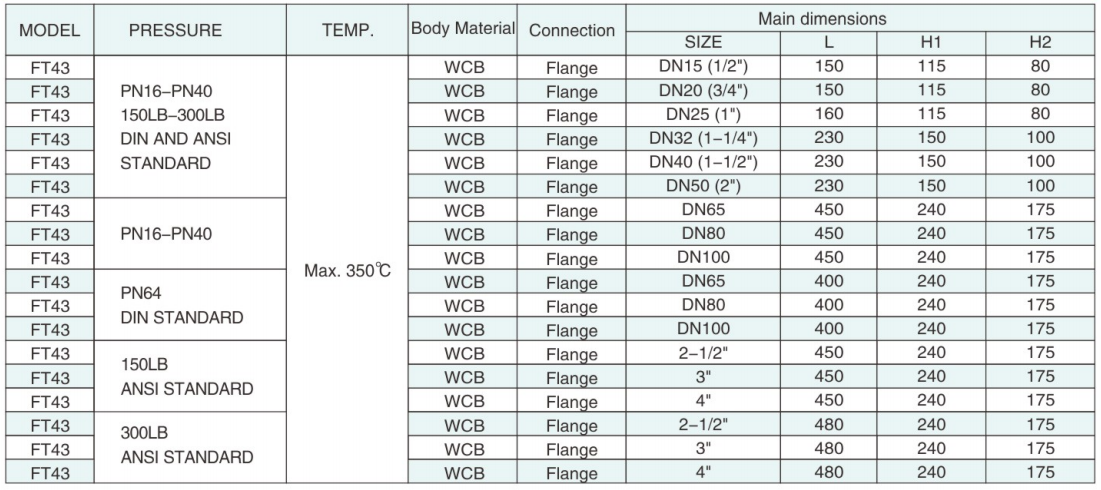

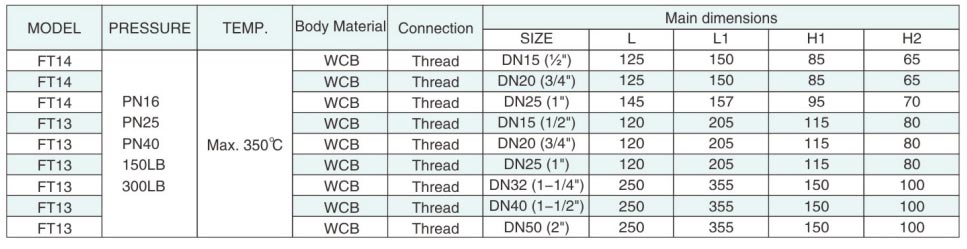

SPECIFICATION
