TD42 THERMODYNAMIC DISC STEAM TRAP

TD42 THERMODYNAMIC DISC STEAM TRAP

Category: Steam trap

Tel: +86-13736311582

Fax: +86-577-67358700

E-mail: sale@greatdesignvalve.com

Description

For Further Queries, Send Us A Message! Our Team Will Be In Touch.

STRUCTURE CHARACTERISTICS

1、It has the steam or air thermal insulation device, which will not be affected by the environmental humidity. It reduces the frequency of motion and lengthens the lifetime.

2、It is equipped with filter and drain valve.

3、It is sensitive and reliable in operation with large capacity.

MAIN PARTS MATERIALS

No. Part name Material
1 Plug screw 45#
2 Screen 304
3 Body WCB
4 Valve plate Q 235
5 Bonnet WCB

TECHNICAL REQUESTS

1.Design & manufacture:ASTMF 1139-1988

2.Face to face dimesion:ASME B16.10-1992

3.Test & inspection: API598

4.Thread standard:NPT or BSP

5. Flange ends: ASME/DIN/JIS

MAIN APPLICATION

This type of steam trap is suitable for steam piping and steam equipment. It can prevent the lekage of steam and drain condensation

water, which thus can save energy and prevent water hammer situation and the trouble caused by it.

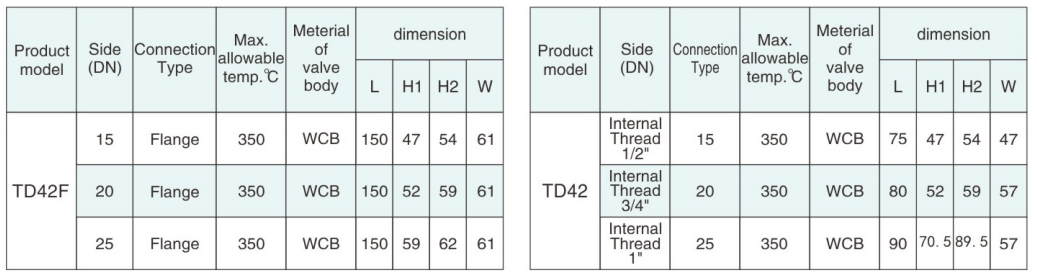

SPECIFICATION
